XVGA BOX GBS 8219
GBS-8219, Old CRT Replacement for Fanuc, Mitsubishi, SIEMENS, Hitachi, Toshiba, GE, Matsushita, Heidenhain, Mazak, Tatung, Totoku, Magnetek, KEM, KRISTEL, DATA RAY, NUM, SHARP, YASKAWA...
Introduce:
Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb,MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display, Specialized Display of imported PSP, Bowling and other recreational facilities, etc.
- Feature specifications
|
Input |
Signals |
MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
|
Interface |
9pin,3pin,6pin,14pin,20pin,25pin |
|
|
Horizontal Frequency Rate(H) |
12kHz to 40kHz automatically recognized |
|
|
Output |
Supports |
15pin VGA,Resolution:800*600/60HZ or custom-resolution |
|
Interface |
D-Sub 15 PIN standard VGA port |
|
|
Power |
DC 12V 1.0A |
|
Note:
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6.Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

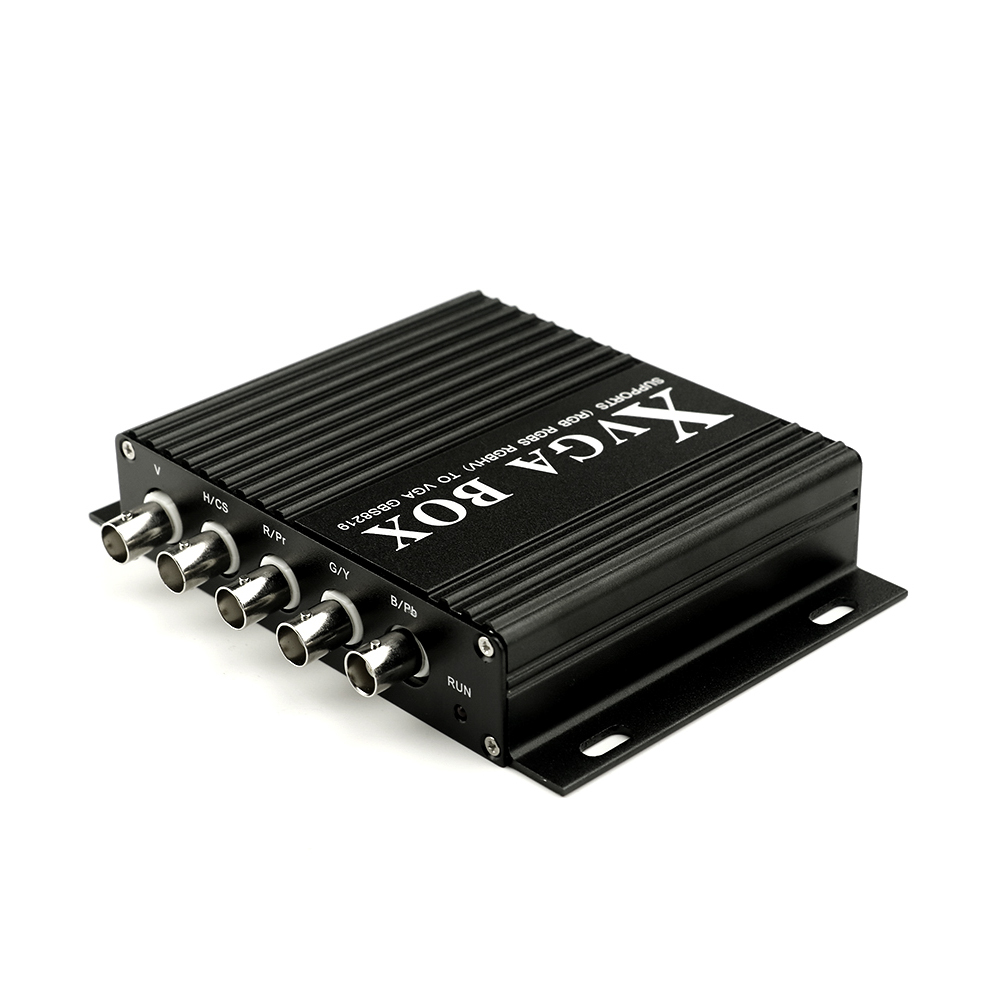

3. Interface Specification
|
Item |
Spec. |
Remarks |
|
V |
To connect V interface of the input device |
Input Channel Ⅰ |
|
H/CS |
To connect H(CS) interface of the input device |
|
|
R/Pr |
Red signal input/ Pr signal input |
|
|
G/Y |
Green signal input/ YPBPR -Y signal input |
|
|
B/Pb |
Blue Signal input/YPBPR -Pb signal input |
|
|
RUN |
Running Status Indicator |
|
|
VIDEO in |
To connect 9-pin interface of the input device |
Input Channel Ⅱ |
|
VGA out |
Standard sub-15p VGA female interface |
VGA Output |
|
MENU |
Use to adjust screen /programming |
|
|
DC12 |
Power input DC12V, 1A |
|
Note: Input Channel Ⅰ, Input Channel Ⅱ, you can choose one of them
4. Definition for I/O interface
Table 4.1 Definition for Input Channel Ⅱ:
|
PIN |
Input Signal |
|
p1(GND) |
Connect to the ground |
|
p2(GND) |
Connect to the ground |
|
P3(R) |
connect R(ed) interface of the input device |
|
P4(G) |
connect G(reen) interface of the input device |
|
P5(B) |
connect B(lue) interface of the input device |
|
P6 |
Undefined(null) |
|
P7 |
Undefined(null) |
|
P8(H) |
connect H(CS) interface of the input device |
|
P9(V) |
connect V interface of the input device |
Table 6.1 Accessories list
|
Item |
QTY |
Remarks |
|
User’s Manual |
1 |
English |
|
Power Adaptor |
1 |
DC12V,1A |
|
half 9pin cable |
1 |
See following definition |
|
9pin M-F cable |
2 |
1 Male + 1 Female |
Table 6.2 Definition of 9 Pin cable
|
Name |
Wire color |
Signal |
|
A |
Silver web |
Shield |
|
B |
Black wire |
Ground(GND) |
|
C |
White wire |
Vertical Frequency Rate(V) |
|
D |
Orange wire |
Horizontal Frequency Rate(H) |
|
E |
Blue wire |
Blue(B) |
|
F |
Green wire |
Green(G) |
|
G |
Red wire |
Red(R) |
|
H |
Brown wire |
Undefined(null) |
1pc/box. G.W.:0.61kg
Top quality, Best service, Fast shipment
Gonbes Tech is professional manufacturer of VGA Converters and LCD Monitors. Mainly for repairing Arcade Game Machine & CNC Machine. All of our products are approved by satisfied customers all over the world.
Thanks for visiting! More product details will be provided to you if you ask.
